轻量级行为树编辑器

Posted on 2015-04-22

在制作动作游戏时，需要一个轻量级可跨平台的行为树编辑器，有幸在github上找到了behavior3js这个项目。因为是用js写的，跨平台不在话下，比起其他C++等项目配置，运行和修改也都要简单很多。

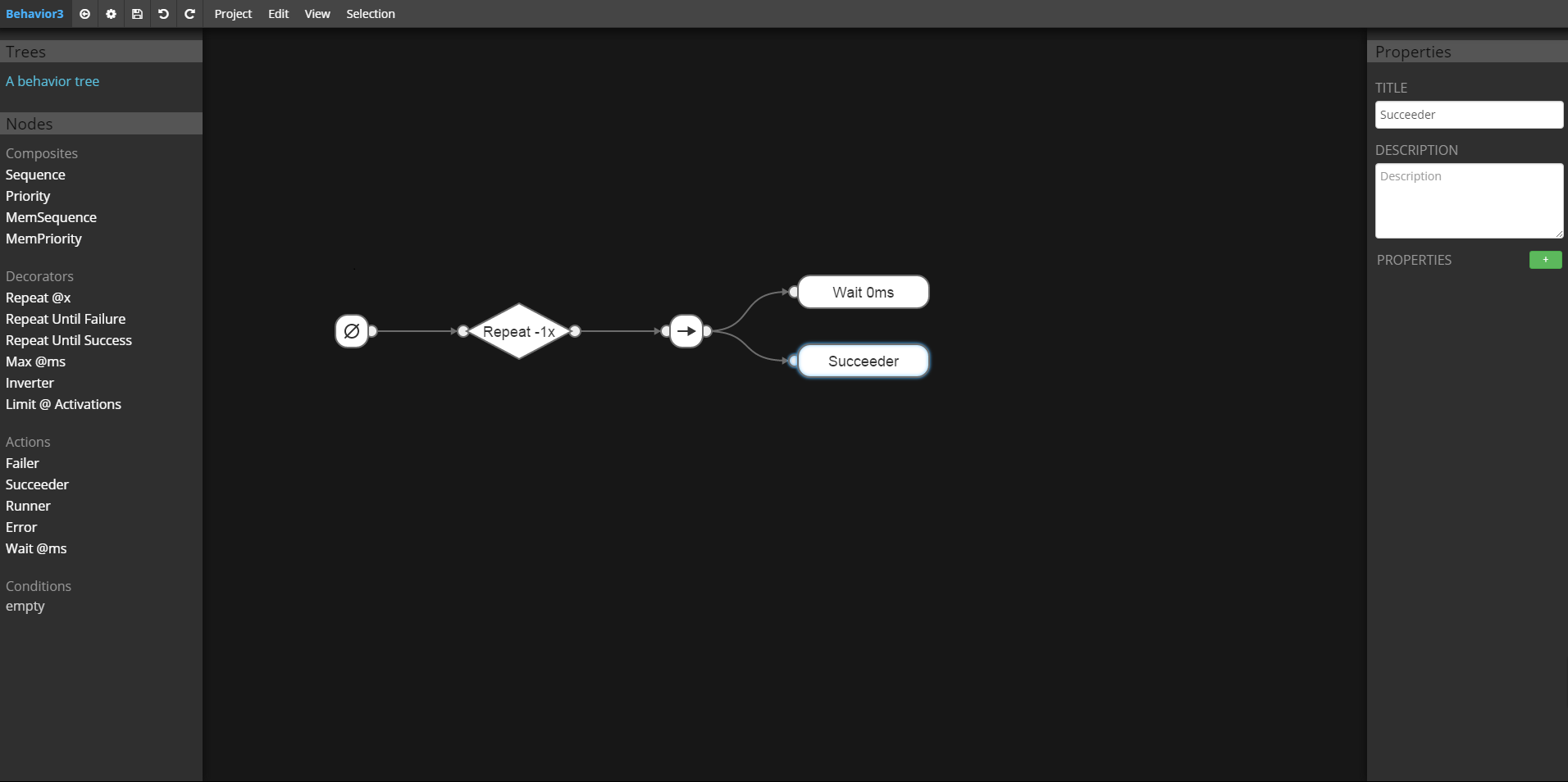

先看看编辑器的外表

enter image description here

基本编辑，导入，导出功能都已经很完备了，只需稍加修改即可应用在自己的项目中了。

Add custom node 增加自定义节点

在helpers.js中加入如下代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
app.helpers.addDynamicParameterRow = function(table, key, value) {
    var row = $('<tr></tr>');
    $('<li class="header"><a href="#">'+category+'</a></li>');
    var colKey = $('<td><input id="key" type="text" placeholder="Parameter key" value='+(key||"")+'></td>');
    var colVal = $('<td><input id="value" type="text" placeholder="Parameter value" value='+(value||"")+'></td>');
    var colCat = $('<td></td>');
    var colOp = $('<td class="dynamic-table operators"><input type="button" class="operator" value="-"></td>');

    colOp.click(app.events.onRemDynamicRow);

    row.append(colKey);
    row.append(colVal);
    row.append(colCat);
    row.append(colOp);
    row.hide();
    row.fadeIn(100);

    table.append(row);
}

app.helpers.resetEditNodeRow = function(table, name, title) {
    table.html('');
    var row = $('<tr></tr>');
    var colKey = $('<td><input id="name" type="text" placeholder="Node name" value='+name+'></td>');
    var colVal = $('<td><input id="title" type="text" placeholder="Node title" value='+title+'></td>');
    var colOp = $('<td class="operator"><input type="button" class="operator" value="+"></td>');

    colOp.click(function() {
        app.helpers.addEditNodeParameterRow(table);
    });

    row.append(colKey);
    row.append(colVal);
    row.append(colOp);
    row.hide();
    row.fadeIn(100);

    table.append(row);
}

app.helpers.addEditNodeParameterRow = function(table, key, value) {
    var row = $('<tr></tr>');
    var colKey = $('<td><input id="key" type="text" placeholder="Parameter key" value='+(key||"")+'></td>');
    var colVal = $('<td><input id="value" type="text" placeholder="Parameter value" value='+(value||"")+'></td>');
    var colOp = $('<td class="dynamic-table operators"><input type="button" class="operator" value="-"></td>');

    colOp.click(app.events.onRemDynamicRow);

    row.append(colKey);
    row.append(colVal);
    row.append(colOp);
    row.hide();
    row.fadeIn(100);

    table.append(row);
}

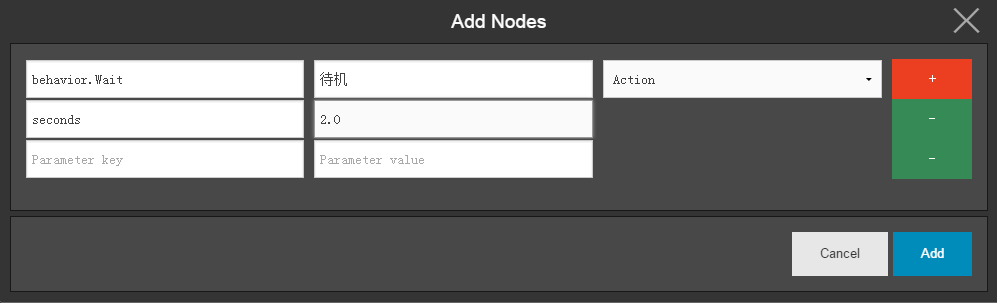

这样我们就可以自定义节点的名称（对应类名）和标题（用于显示），并可以增加任意数量的参数，如下图所示：

enter image description here

Save and read custom nodes 存取自定义节点

大致看了一下代码，最后选择一个人偷懒的方法。清空编辑器，添加节点后，导出json，保存到工程本地，如下所示：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
customJson =
{
    "title": "A Behavior Tree",
    "description": "",
    "root": null,
    "display": {
        "camera_x": 481,
        "camera_y": 477,
        "camera_z": 1,
        "x": 0,
        "y": 0
    },
    "parameters": {},
    "nodes": {},
    "custom_nodes": [
        {
            "name": "behaviorTree.BTIsNearBy",
            "title": "是否进入攻击范围",
            "category": "condition",
            "parameters": {
                "target": "hero",
                "distance": "100"
            }
        },
        {
            "name": "behaviorTree.BTAttack",
            "title": "普通攻击",
            "category": "action",
            "parameters": {
                "target": "hero"
            }
        },
        {
            "name": "behaviorTree.BTSelector",
            "title": "选择器",
            "category": "composite",
            "parameters": {}
        },
        {
            "name": "behaviorTree.BTSequence",
            "title": "顺序执行器",
            "category": "composite",
            "parameters": {}
        },
        {
            "name": "behaviorTree.BTParallel",
            "title": "并行执行器",
            "category": "composite",
            "parameters": {}
        },
        {
            "name": "behaviorTree.BTChase",
            "title": "追逐",
            "category": "action",
            "parameters": {
                "target": "hero",
                "distance": "100"
            }
        },
        {
            "name": "behaviorTree.BTInverter",
            "title": "反相结点",
            "category": "decorator",
            "parameters": {}
        },
        {
            "name": "behaviorTree.BTWaitRandom",
            "title": "待机随机",
            "category": "action",
            "parameters": {
                "minTicks": "0",
                "maxTicks": "60"
            }
        }
    ]
}

之后在app.initializeEditor方法最后添加代码：

1
2
app.view.importFromJSON(JSON.stringify(customJson));
app.helpers.updateNodes();

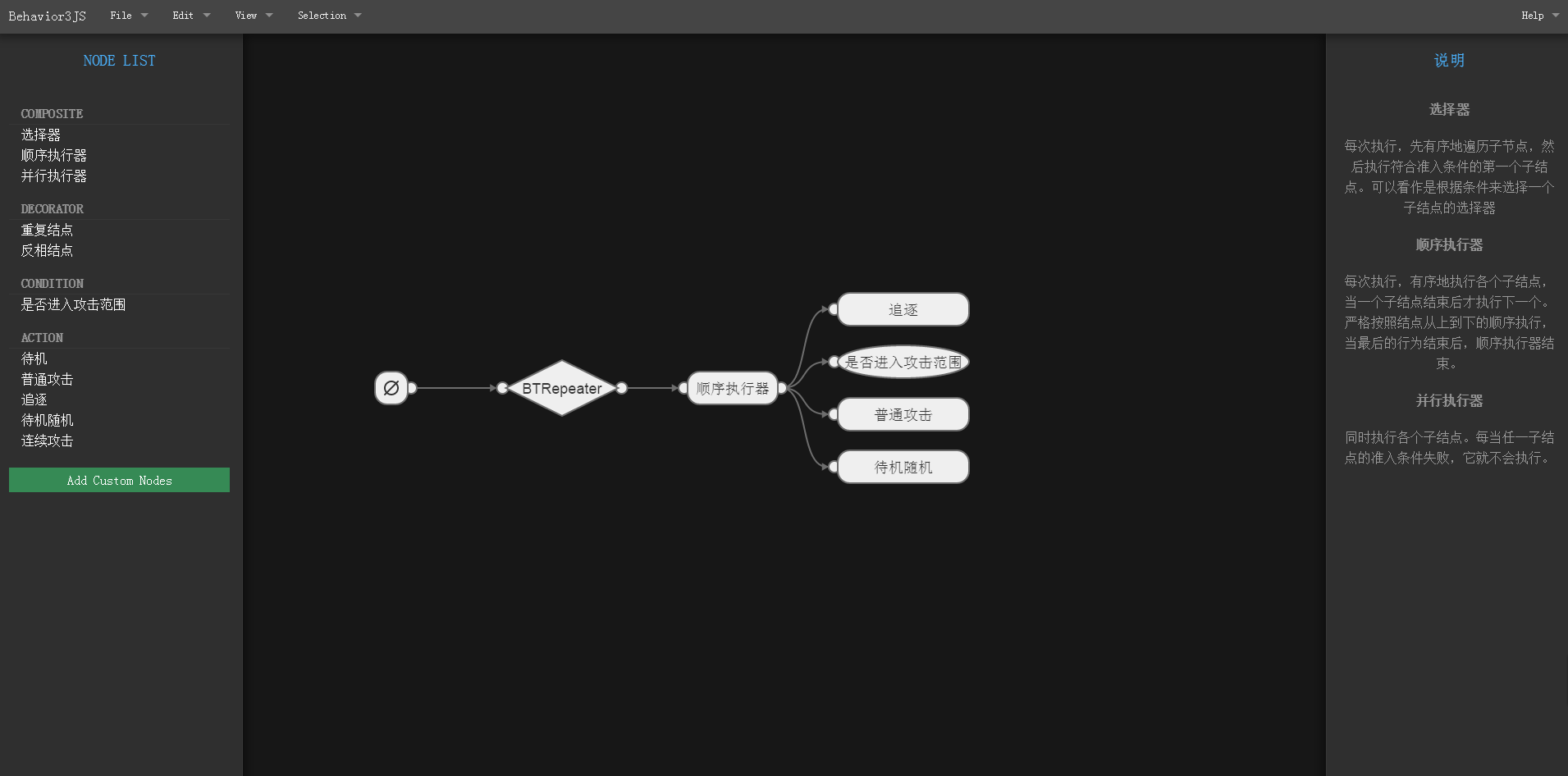

这样每次初始化都会调用导入方法，把我们之前保存的自定义的节点加载进来。下面给出个最终效果图：

enter image description here

可以看到右侧还添加了说明，方便交给策划使用。

命令行启动

但是如果还需要搭建web服务器这样的操作才能使用还是不能让人满意的。

这里使用Node.js来方便建立web服务器，把node可执行文件放到目录下，大约5MB。建立一个run.js，代码如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
var PORT = 3002;

var http = require('http');
var url=require('url');
var fs=require('fs');
var path=require('path');

var mine = {
  "css": "text/css",
  "gif": "image/gif",
  "html": "text/html",
  "ico": "image/x-icon",
  "jpeg": "image/jpeg",
  "jpg": "image/jpeg",
  "js": "text/javascript",
  "json": "application/json",
  "pdf": "application/pdf",
  "png": "image/png",
  "svg": "image/svg+xml",
  "swf": "application/x-shockwave-flash",
  "tiff": "image/tiff",
  "txt": "text/plain",
  "wav": "audio/x-wav",
  "wma": "audio/x-ms-wma",
  "wmv": "video/x-ms-wmv",
  "xml": "text/xml"
};

var server = http.createServer(function (request, response) {
    var pathname = url.parse(request.url).pathname;
    var realPath = path.join("tools", pathname);
    console.log(realPath);
    var ext = path.extname(realPath);
    ext = ext ? ext.slice(1) : 'unknown';
    fs.exists(realPath, function (exists) {
        if (!exists) {
            response.writeHead(404, {
                'Content-Type': 'text/plain'
            });

            response.write("This request URL " + pathname + " was not found on this server.");
            response.end();
        } else {
            fs.readFile(realPath, "binary", function (err, file) {
                if (err) {
                    response.writeHead(500, {
                        'Content-Type': 'text/plain'
                    });
                    response.end(err);
                } else {
                    var contentType = mine[ext] || "text/plain";
                    response.writeHead(200, {
                        'Content-Type': contentType
                    });
                    response.write(file, "binary");
                    response.end();
                }
            });
        }
    });
});
server.listen(PORT);

之后建一个bat或command调用run.js

1
2
start explorer http://localhost:3002/editor/index.html
node run.js

码完收工。
